Third Series Woodsman

Match Target Model with 6" barrel illustrated. Also came with 4-1/2" barrel. All third series models are basically the same internally, but there are significant external differences. The Huntsman and Targetsman, for example, lack the automatic slide stop that is standard on the Sport, Target, and Match Target. They also have a slightly heavier, non-tapered barrel, an integral front sight, and different rear sights than the other models. Several changes took place within the third series, and not all parts will interchange with earlier or later 3rd series guns, even those of the same model.

Pricing will depend on whether the part is new or used, and, if used, on condition. For barrels and magazines, please indicate whether appearance and condition of the bluing is important, or whether you would prefer cheap and functional, but not necessarily pretty. All parts that I have are Colt originals unless otherwise stated, and all are sold with satisfaction guaranteed or you can return the part for a refund of the purchase price.

If you would like to order a part, please fill out the "Woodsman Parts Order/Inquiry " form. Please be as complete as possible in order to save us both a lot of unnecessary correspondence back and forth.

You can then send it to me electronically, or you can print out the form and mail it to me at:

I will respond with availability and pricing. Only those few parts that are listed in GREEN, and marked with an asterisk, are still available. Those in RED are not available.

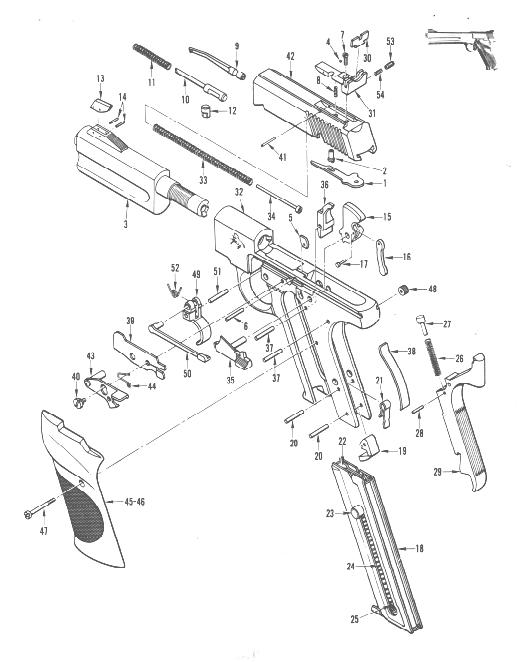

Drawing Part Number Number 1 Assembly Lock 50019* 2 Assembly Lock Plunger 51249* 3 Barrel Detail Assembly: 4-1/2" Match Target 50696* 6" Match Target 50096* Target Model 6" 50093* Sport Model 4-1/2" 50002* Barrels are both new and used. Price depends on condition. Please state your preferences. Third series barrels will fit the second series guns, and are identical except for the markings. Huntsman 6" 50885 Targetsman 6" 50885 Huntsman 4-1/2" 50878 4 Rear Sight Detent Ball- (2 Required) 51195 5 Ejector 51549 6 Ejector Pin 50032 7 Rear Sight Elevating Screw 51682 8 Rear Sight Elevating Spring 51194 9 Extractor 50021 10 Firing Pin 50022 11 Firing Pin Spring 50023 12 Firing Pin Stop 50024 13 Front Sight-1/8" Blade Match Target 51368 Target Model 51370 Sport Model 51366 13 Front Sight Blade .100 Match Target 51367 14 Front Sight Blade Pin-(2) 50060 15 Hammer 50035* 16 Hammer Strut 50036 17 Hammer Strut Pin 50729 18 Magazine Assembly 51464 18a Magazine Base 51471 18b Magazine Base Lock 51470 19 Magazine Catch: Early Huntsman and Targetsman 50881 All other models 51480* 20 Magazine Catch, Pin and MainSpring Housing Lock Pin-(2) 50015 21 Magazine Catch Spring 51481 22 Magazine Follower 51467 23 Magazine Follower Stud 51468 24 Magazine Spring 50064 25 Magazine Spring Guide 50115 26 Main Spring 50010 27 Main Spring Cap 50011 28 Main Spring Cap Pin 50012 29 Main Spring Housing: Match Target 51483* Early Huntsman and Targetsman 50688* All other models 51482* 30 Rear Sight-Blade 1/8" 51648 30 Rear Sight Blade-.100 51229 31 Rear Sight Leaf Assembly: Match Target 51696 Target and Sport 51694 Huntsman 50190 Targetsman 51879 Elliason rear Sight-(Not Shown) 94092 32 Receiver (Main Frame) NotFor Sale 33 Recoil Spring 50025 34 Recoil Spring Guide 50026 35 Safety Lock Detail Assembly 50038 36 Sear 50042 37 Sear Pin and Main Spring Retainer Pin-(2) 50015 38 Sear Spring 50044* 39 Side Plate: Huntsman and Targetsman 50689* All other models 50045 40 Side Plate Screw: Huntsman and Targetsman 50684 All other models 50107 41 Rear Sight Leaf Pin 51647 42 Slide Detail Assembly: Target, Sport, Match Target 51490 Huntsman 50692 Targetsman 51887 43 Slide Stop Detail Assembly 51674* 44 Slide Stop Spring 50109 45 Stock-Left Hand-Walnut (With Thumb Rest*) 51968 Stock-Left Hand-Walnut (Without Thumb Rest*) 51967 46 Stock-Right Hand-Walnut* 51966 47 Stock Screw 50088 48 Stock Screw Nut 50089 49 Trigger 51479 50 Trigger Bar 50050* 51 Trigger Pin 50017 52 Trigger Spring 51222 53 Rear Sight Windage Screw 51192 54 Rear Sight Windage Spring 51193 55 Rear Sight Detent Spring 51683 'Stocks sold only in pairs, with Stock Screws
